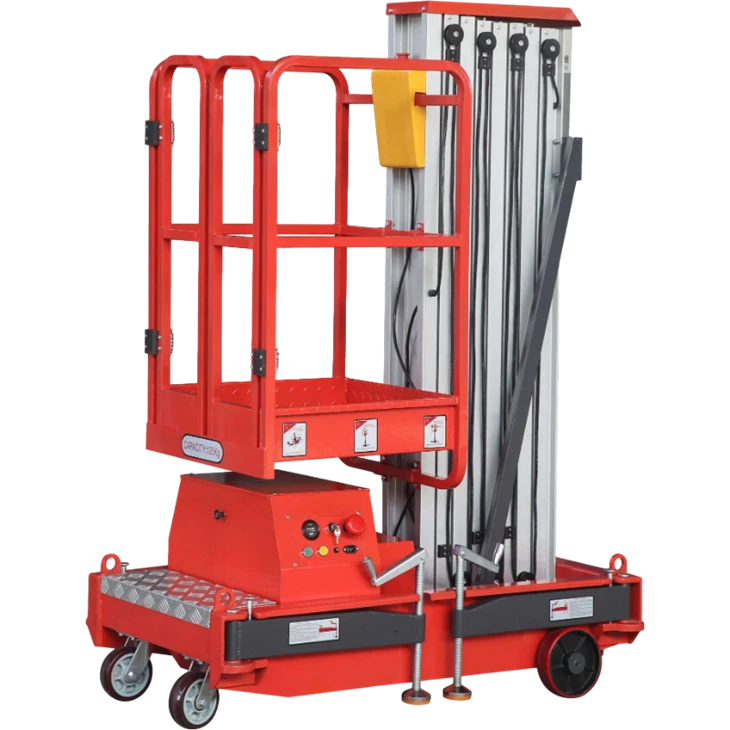

Single Vertical Mast Lifts
L Series 7.8m ~ 11.8m
1. Easy to move and offers convenient loading and unloading.
2. Low-cost solution to overhead work.
3. Multiple automated safety configurations.
4. Deep cycle battery, low voltage protection, automatic charging.
5. Strong structure, large load capacity, smooth lifting, easy maintenance.
6. Widely applicable, suitable for factory workshops, squares, lobbies, airports, parks, etc.
- Product Introduction
Single Vertical Mast Lifts
L Series 7.8m ~ 11.8m
The L series Single Vertical Mast Lifts practically eliminating the need for scaffolding or ladders, bring you closer to your overhead tasks and maintenance projects. These lifts are designed to fit through standard doorways, navigate narrow aisles, and reach more locations than ever before. Ideal for general repairs, routine maintenance, inventory management, and even hanging holiday decorations, push-around vertical mast lifts offer unmatched versatility and convenience for a variety of applications.
You can adjust the platform to meet your specific application needs in under a minute, all without requiring any tools.
Features and Safety Measures
- Leveling leg
- Emergency Stop Button
- Dual controller operation
- Emergency drop pull button
- Level indicator
- Load limit
- Electric control panel
- Polyurethane wheel
- Movable supporting leg
Specification
| Model | L6-100 | L8-100 | L10-100 | |
| Max Platform Height (h) | 5800 mm | 7800 mm | 9800 mm | |
| Max Machine Height (i) | 7050 mm | 9050 mm | 11050 mm | |
| Overall Length (a) | 1420 mm | |||
| Overall Width (b) | 825 mm | |||
| Overall Height (c) | 1950 mm | 2040 mm | 1950 mm | |
| Platform Length (d) | 642 mm | |||
| Platform Width (e) | 636 mm | |||
| Platform Height Above Ground (j) | 675 mm | 735 mm | 675 mm | |
| Support Foot Expansion Size (f * g) | 1925 mm * 1750 mm | |||
| Max Capacity | 125 kg | |||
| Lifting Motor | AC: 110V/0.75kw, 220V /0.75 kw | |||
| DC: 24V/2.2kw | ||||
| Lifting Motor | DC: 24V/2.2 kw | AC: 110V/ 0.75 kw 220V/ 0.75 kw |
||
| Time of Rise | 34 s | 38 s | 42 s | |
| Time of Descent | 45 s | 55 s | 65 s | |
| DC Model Charger | 12 V / 15 A | |||
| DC Model Battery Voltage/ Capacity | 12 V/105 Ah | |||
| Tire Size | Front wheel: Φ150 mm * 50 mm | |||
| Rear wheel: Φ200 mm * 50 mm | ||||
| Overall Net Weight | AC: 438 kg | AC: 443 kg | AC: 484 kg | |
| DC: 472 kg | DC: 477 kg | DC: 518 kg | ||
